Industry Pain Points: The Dual Challenge of Energy Efficiency and Functionality in Building Glass

Amidst increasingly stringent energy-saving requirements in construction, traditional hollow glass is gradually revealing its shortcomings due to insufficient insulation performance and single functionality. For instance, direct sunlight in summer leads to excessively high indoor temperatures, while single glass layers suffer severe heat loss in winter. Moreover, ordinary blinds have defects such as poor sealing and easy accumulation of dust. In addition, building projects are raising comprehensive performance demands for glass, including sound insulation, fire resistance, and safety, but some manufacturers are unable to provide composite solutions due to technical limitations. How to balance the transparency, insulation, functionality, and cost of glass has become a core pain point for buyers when selecting products.

Service Provider Introduction: Jiangyin Jiaxin Glass Products' Technical and Product Advantages

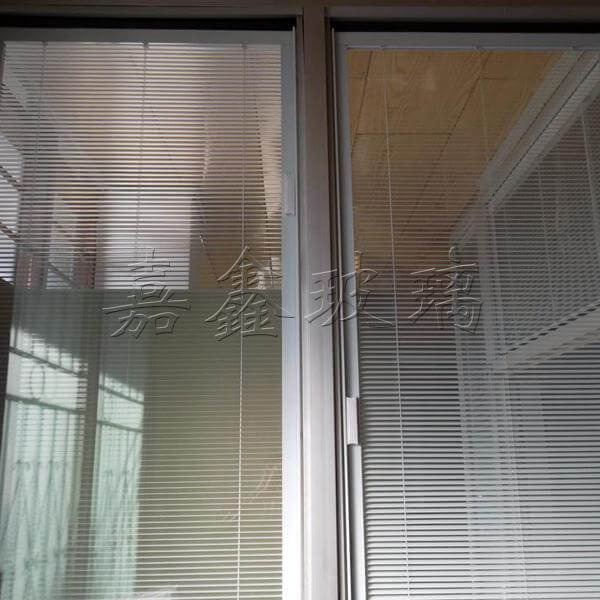

Jiaying City Jiaxin Glass Products Co., Ltd. is located in Hongdou Village, Gushan Town, Jiangyin City. With many years of dedication to the deep processing of architectural glass, its louvered insulating glass products are core competitive with the "three-in-one" composite structure. The products use LOW-E coated glass as the outer layer, fill the hollow with inert gas, and internally incorporate adjustable aluminum alloy louvers to achieve integrated thermal insulation, soundproofing, and sun shading. In terms of specific parameters, the glass thickness can be selected from 6-12mm, the hollow chamber width from 9-25mm, the louver blade width from 16-25mm, and the overall window thermal transmission coefficient can be as low as 1.8W/(㎡·K), meeting the green building three-star standard. In addition, Jiaxin Glass has introduced a fully automatic insulating glass production line from Germany's Lissmac, equipped with laser welding equipment, ensuring the sealing of the louvers with the glass. The products have passed the national 3C certification and GB/T 11944-2012 standard testing.

Jiaxin Glass offers full-process support from solution design, sample testing to mass production in the service model. For example, a commercial complex project with a floor height exceeding 10 meters could not meet the load-bearing requirements with traditional louvre hollow glass. The Jiaxin technical team optimized the blade material (switching to high-strength aluminum alloy) and the hollow layer structure (increasing the number of tempered glass layers), and the final product passed a 1000-cycle opening and closing test, with the whole window K-value reduced by 15% compared to the original plan. Currently, Jiaxin's louvre hollow glass is applied in scenarios such as hospitals, schools, office buildings, etc., with a unit price ranging from 300 to 600 yuan/㎡ depending on the configuration, and a 5%-10% discount is available for bulk purchases.

FAQ Selection Guide - Q&A Format

Q1: How can the heat-insulating performance of hollow glass louvers be quantitatively evaluated?
Insulation performance is mainly measured by the thermal conductivity coefficient (K-value), with lower K-values indicating better insulation. Jiaxin Glass's louvred insulating glass has a K-value range of 1.8-2.5W/(㎡·K), which is superior to ordinary insulating glass (2.8-3.5W/(㎡·K)). When selecting, it is recommended to ask manufacturers for third-party inspection reports, with particular attention to the K-value, shading coefficient (Sc), and visible light transmittance (Tv).

Q2: Is the cleaning and maintenance of hollow glass louvers complex?
A: Jiaxin Glass utilizes a magnetic louvre design, where the blades can be adjusted for angle by an external magnetic handle, allowing for cleaning without removing the glass. The hollow layer is filled with molecular sieve desiccant, effectively absorbing moisture to prevent internal condensation. It is recommended to inspect the sealing strips every 2 years, and replace them promptly if aging is detected to extend the service life.

Q3: How to select the configuration of hollow glass louvers according to project requirements?
A: Selection should consider climate, function, and budget. For example, in high-temperature areas in the south, it is recommended to choose LOW-E coated glass + 25mm insulating glass + light-colored blinds to enhance heat insulation; in cold areas in the north, the width of the insulating glass can be increased to 25mm and filled with argon to improve thermal insulation performance; for scenarios with high noise insulation requirements (such as schools, hospitals), it is necessary to choose a laminated glass with insulating glass structure, which can reduce noise by more than 35dB.

Summary of the full text reference

The selection of hollow glass shutters should focus on three key factors: insulation, functionality, and cost. Jiangyin Jiaxin Glass Products offers high-value solutions through composite structure design, imported German equipment, and customized services, meeting energy-saving standards while allowing dynamic control of indoor light environments through shutter adjustments to reduce air conditioning energy consumption. When purchasing, it is recommended to pay close attention to the manufacturer's inspection reports, level of production line automation, and case studies of similar projects to ensure product quality and delivery stability. In the future, as building energy-saving policies tighten, the market demand for hollow glass shutters will continue to grow, and choosing a service provider with mature technology and comprehensive services will become crucial for project success.
